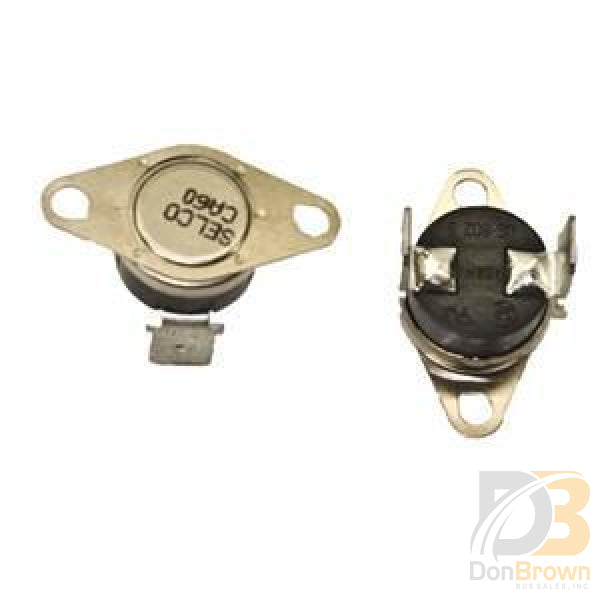

Switch, Temperature, Close on Rise 111120

Trans/Air

Regular price $38.00

Shipping calculated at checkout.

Selco CA60

Specifications

Type:

Automatic Reset

Function:

Open On Rise (Normally Closed)

Open Temperature:

60°F ± 7°F

Close Temperature:

40°F ± 9°F

Orientation from Mounting Holes:

90°

Mounting/Sensing:

Surface

Electrical Rating:

125VAC, 15Amps/250VAC, 8Amps, Resistive, 100,000 Cycles
120VAC, 5.8FLA, 34.8LRA/240VAC, 2.9FLA, 17.4LRA, Inductive, 100,000 Cycles
(200mA minimum)
Gold contacts: 30VDC,1Amp, 120VAC, 125VA/240VAC, .5A, 100,000 Cycles
(5VDC, 1mA minimim)

Environmental:

-40°F-350°F (-40°C-176.6°C)

Insulation Resistance:

100 MΩ (with a 500 VDC megger)

Circuit Resistance:

50mΩ or less, Gold contacts 10mΩ or less

Dielectric Strength:

1.500 VAC/1 minute

Approvals:

UL, CSA, VDE, RoHS

Switch, Temperature, Close on Rise 111120

Specifications
