IN STOCK

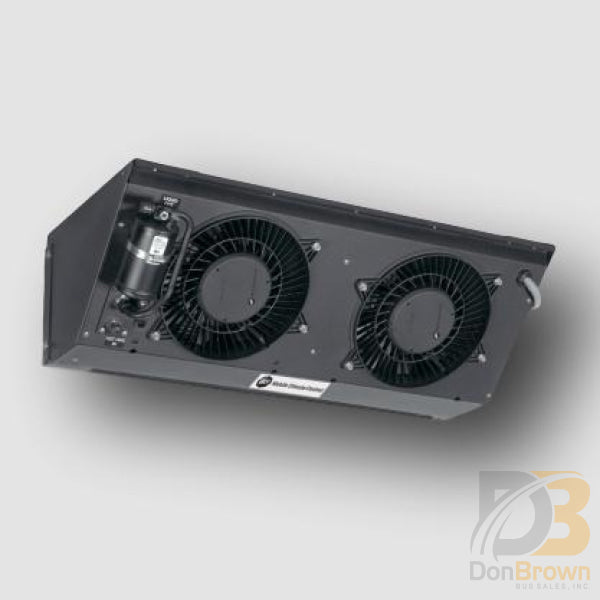

77-00273-11 TOP LEVEL KIT, CM-2 CONDENSER, 12V, W/ SMOOTH SKIRT GRILL, SLIM LINE MICRO CHANNEL AC UNIT

MCC

Sale price $931.00 Regular price $1,198.64

Shipping calculated at checkout.

IN STOCK

Install Kit CM2/CM3 Install Kit

This Kit covers most situations you may run into such as short hoses or corroded fittings

If replacing an older version the dimensions may be different. New mounting holes maybe needed.

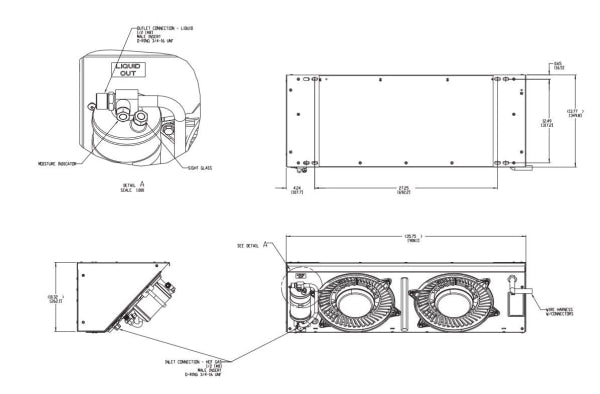

Dimensions and Technical Specifications

Replaces

77-62122-00

77-01299-11

77-62122-11

6-044750

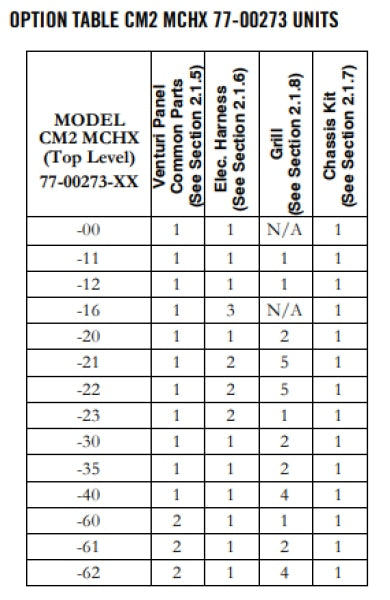

Substitutes

77-00273-00 (no grill)

77-00273-12

77-00273-16

77-00273-20 (grill different) 79-62014-20

77-00273-30 (grill different)

77-00273-35 (grill different)

77-00273-40 (grill different)

Common parts needed for replacement

Kit of all the below CM2/CM3 Install Kit (Cheaper if bought as a kit)

Fitting, Clip, 90°, 1/2 FO x #8 Hose, Aeroquip 313356

Fitting, Clip, 90°, 1/2 FO x #10 Hose, Aeroquip 313348

Fitting, Clip, Splicer, #8 x #8 Hose, Aeroquip 313427

Fitting, Clip, Splicer, #10 x #10 Hose, Aeroquip 313428

Hose, Refrigeration, #8 Aeroquip 311020

Hose, Refrigeration, #10 Aeroquip 311021

Capacity: 60000 Btu/hr (17.58 kW) IMACA

Air flow: 900 CFM (1529 m3 /hr)

Condenser coil: Advanced technology Micro Channel Heat Exchanger (MCHX)

Condenser fans: Unitized, low-profile, axial-flow type propeller fans balanced for quiet, vibration-free operation with finger guard

Fan motors: Totally enclosed, pancake-style, permanent-magnet type with extended-life, permanently lubricated bearings

Max amperage requirement: 14 amps @ 13.5 VDC; 7 amps @ 27.0 VDC

Safety controls: High refrigerant pressure cut-out 400 psi (28 bar); cut-in 300 psi (21 bar)

Receiver filter dryer: 16 in3 (262 cm3 ), ½” [#8] Male Insert O-Ring (MIOR)

Weight: 45 lbs (20.5 kg)

Available color: Midnight black
